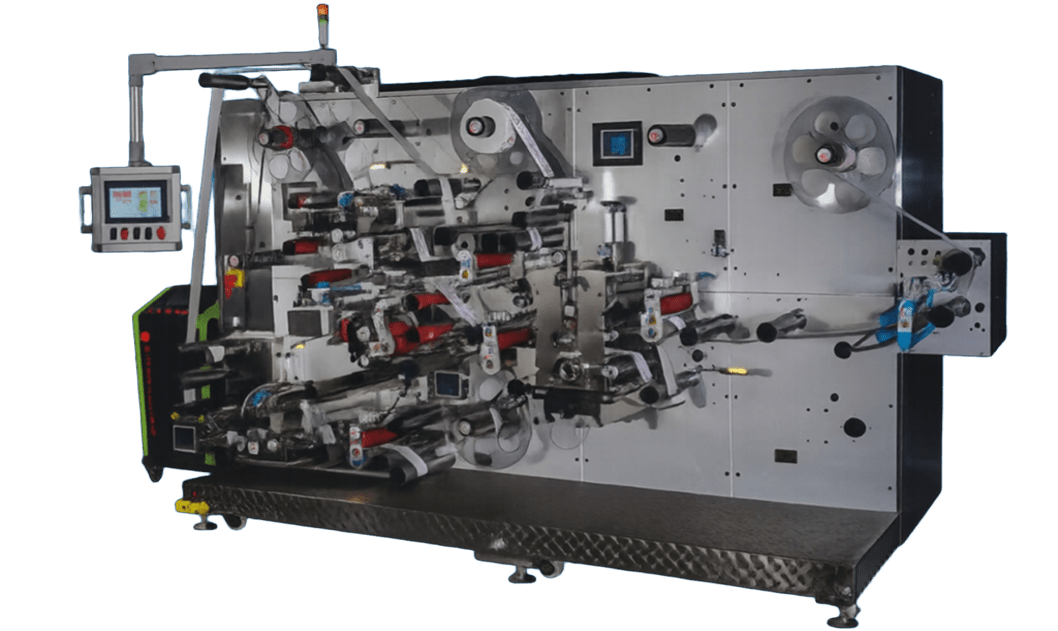

RFID Label Converting Machine

Information

  • Name:Best RFID Label Converting Machine
  • Category: Business, Industrial, Best RFID Label Converting Machine In Tirupur
  • Tags: RFID Label Converting Machine: Converts dry inlays into wet inlays, RFID labels, stickers, and hang tags with high-precision lamination, die cutting, slitting, inspection, and optional RFID/CCD quality control modules.
  • Location: Tirupur

Best RFID Label Converting Machine In Tirupur

RFID Label Converting Machine

Dry Inlay processing, including vacuum drum handling, hot melt lamination, die cutting, and slitting. it supports the conversion of Dry Inlays into Wet Inlays with on-pitch accuracy as well as RFID stickers and hang tags with off-pitch configuration. The machine features printing material lamination with eye mark registration, providing high precision with an accuracy of ±0.2 mm. It is equipped with a composite bottom paper recycling mechanism that includes bottom liner delamination and re-lamination functions, ensuring efficient material utilization. The machine supports both full rotary and semi-rotary die cutting and is compatible with magnetic rollers and flexible dies for various production requirements. An inkjet sensor marking system is available as an optional feature. Optional modules also include a Wet Inlay lamination unit and a Hang Tag collection module with automatic NG (No Good) product removal. For quality assurance, the machine can be equipped with an RFID detection system featuring NOK inkjet marking, compatible with either the Test System or the Voyantic Test System. In addition, an optional CCD inspection module is available to inspect RFID inlay position, die-cutting accuracy, surface defects or stains, and adhesive application quality. The machine can also be configured with a Satin Lamination function, which requires the optional Ultrasonic Slitting Module.

Best Tag Stripping Machines in Tirupur

Key Features of RFID Label Converting Machine

Integrated Reading & Encoding:
  • Supports UHF (EPC Gen2) and HF/NFC protocols with inline encoding at speeds up to 40 m/min (25,000+ tags/hour). Performs real-time verification and read testing immediately after encoding to ensure chip readability and data accuracy. Synchronizes with vision systems to match printed barcodes/QR codes with RFID data for complete serialization and traceability.

    • Double-Sided Printing:
  • Enables simultaneous printing on both sides of hang tags, labels, and cards in a single continuous production pass. Utilizes HP inkjet or thermal transfer technology to deliver high-resolution variable data on both faces. Supports multi-layer label constructions (3-layer laminates) with precise registered RFID inlay insertion between printed layers.

    • Compact Design:
  • Features a space-saving, low-profile footprint that fits into facilities with limited floor space without reducing output. Employs modular, upgradeable architecture that allows up to 12 process fields while maintaining a small machine footprint. Provides ergonomic touchscreen controls and easy operator access for the shortest possible setup and changeover times

    • All-in-One Functionality:
  • Consolidates unwinding, printing, encoding, lamination, die-cutting, waste removal, and rewinding into one fully integrated system. Operates as a closed-loop process with AI visual inspection and automatic rejection of defective tags in a single pass. Achieves high throughput up to 130 m/min with multi-track (up to 4 lanes) support, all controllable by a single operator via central PLC synchronization.

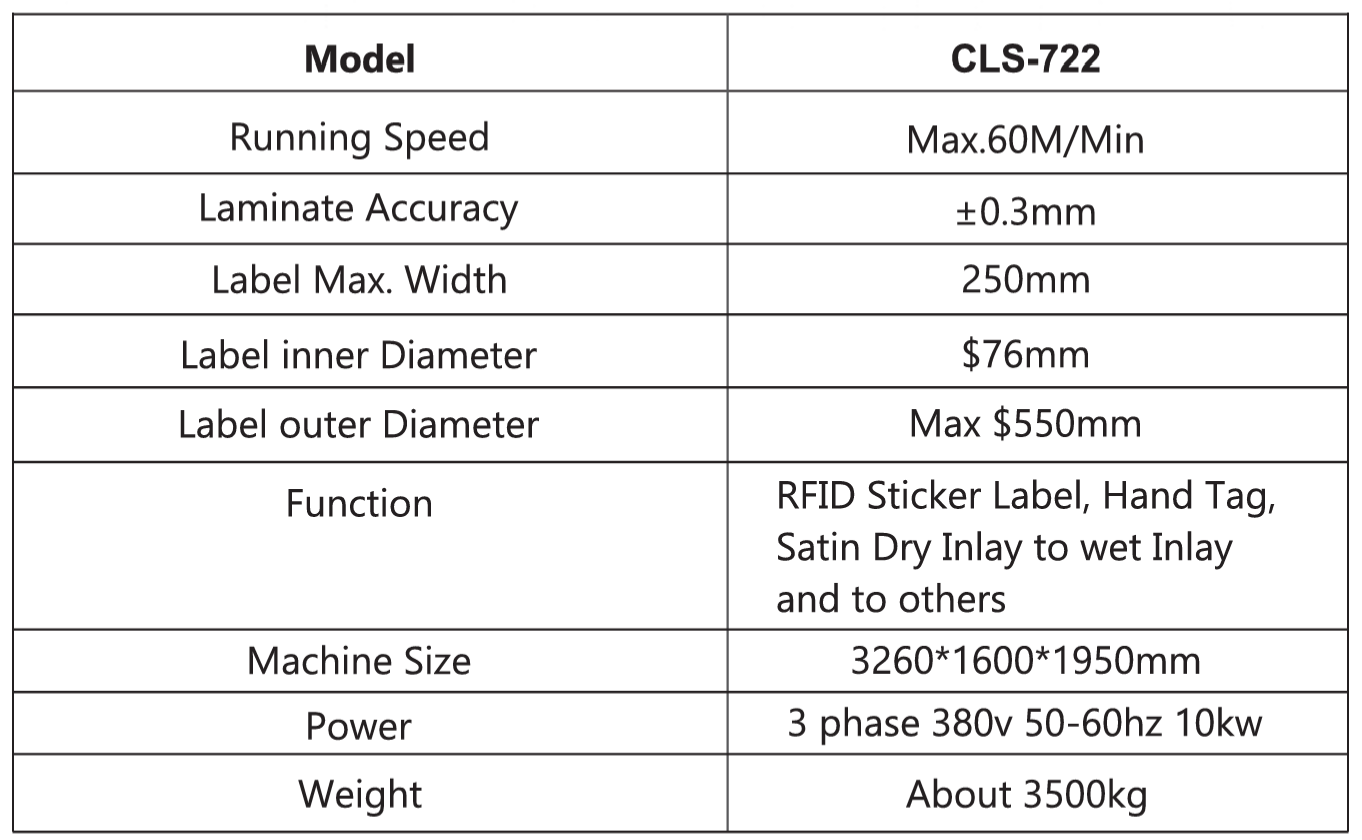

    • Technical Parameter of RFID Label Converting Machine


    Best RFID Label Converting Machine in Tirupur
